Lighting
Control
|
The LUX420 lighting sensor
(luxometer -lux) can be a good ally for the control and savings in lighting
installations and outdoor streetlight control
In the following pdf's you can discover how to save with our solutions for lighting control.
• Lighting saving control system
Additionally we distribute all the
sensors, transmitters and light controllers from Lumandar line of
Honeywell
signature .
|
|
|
 |
|
|
|
|
LUX420S2
The analog sensor LUX420S2 (IP outdoor lux light meter) measures
the illuminance of ambient light and converts it into a signal
current loop.
The output signal of 4-20 mA is supplied by the same power supply
cable, providing easy installation cabling.
The LUX420 light sensor is based on a photo-sensor Si, which
provides a sensitivity close to visible light and stable behavior.
The output range (between 1000lux and 100000lux) is adjustable via
microswitches.
High protection for outdoor (IP64) and solid stainless steel
construction.
•Outdoor
luxmeter LUX420S1 specifications.
•Outdoor
luxmeter LUX420S2
specifications. |
| |
|
|
|
|
LUX420S1-100/200
The
LUX420S1-100/200 analog sensor (IP outdoor lux light meter) is a
twilight probe with a light measurement value adjusted to the
transition from night to day and vice versa (100/200 lux). It
measures the illuminance of ambient light and converts it into a
current loop signal. It is widely used in streetlight control
systems. The 4-20 mA output signal is provided via the same power
cable, offering easy wiring during installation. The LUX420 light
sensor is based on a Si photosensor, which offers sensitivity
close to visible light and stable performance. It features a high
degree of outdoor protection (IP64) and a robust stainless steel
construction. Also available with ModBus RTU (-C) communications.
•Outdoor
lux
meter twilight LUX420S1 -100/200 specifications.
•Outdoor
lux
meter twilight LUX420S1 -100/200 -C specifications.
|
| |
|
|
|
|
LUR-S1
The
twilight outdoor switch LUR_S1 controls outdoor lighting on and
off as night and day. It is based on a Si photo sensor, which
offers sensitivity close to visible light, and stable behavior
through its selectable thresholds and delay times.
It has
internal relay and does not need additional accessories. The
different measurement ranges are easily selected through
configurable microswitches inside. It has high degree of
protection (IP64) for exteriors and solid construction in
stainless steel.
•Crepuscular
switch LUR-S1 specifications. |
| |
|
|
|
|

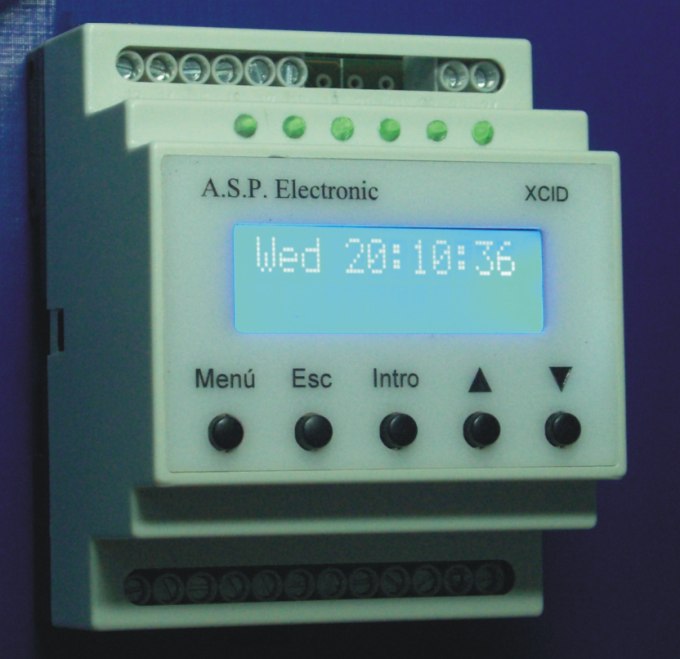

XCID
The XCID the small programmer-controller for lighting installations.
Allows control of up to 6 contactors through Relay output through time programs.
There are three analog inputs for measuring lighting (Light Meters-luxmeter)
that control up to three different lighting zones allowing saving energy when
daylight is enough. Is part of the ASP Electronic lighting saving solution.
•Lighting
controller XCID specifications. |
|
|
 |
|
|
|
|
|
TWILIGHTS
SENSORS AND LIGHTING CONTROL FROM Lumandar Honeywell
.
Lumandar photoelectric control is an automatic switch for lighting, activated by the increase or decrease
in the level of natural light (twilight sensor). The lighting control is completely independent of time,
time, season .. etc.
Impervious to weather and aging to optimize energy consumption, while ensuring proper lighting.
The photocontrols Lumandar enjoy high international prestige and have proven
significant energy savings compared with conventional control systems.
·
Lumandar
General Catalogue.
· Lumandar 1000
-FF-LUAN 44RH - EX (Rele Temporizated 3 seg.)
-FF-LUAT 44RH - EX (Rele Temporizated 30 seg.)
· Lumandar 2001
-FF-LFCT21RH
· Lumandar 2500
-FF-LAMT25RH (Lumandar 2500 )
· Lumandar 2600
-FF-LAMT26RH (Lumandar 2600 )
· Lumandar 3000
-FF-LAMT30RH (Lumandar 3000 )
· Lumandar 3100
-FF-LAMT31RH (Lumandar 3100 )
· Lumandar LESA
-FF-LESA11B5 ( LESA: 50 - 5000 Lux).
-FF-LESA13B2 (LESA: 1000 - 100 000 Lux)
· Lumandar LUT9 |
| |
|
|
